2060 Series Aluminum T-Slot Extrusion Profile for Machine Frames and Workbenches

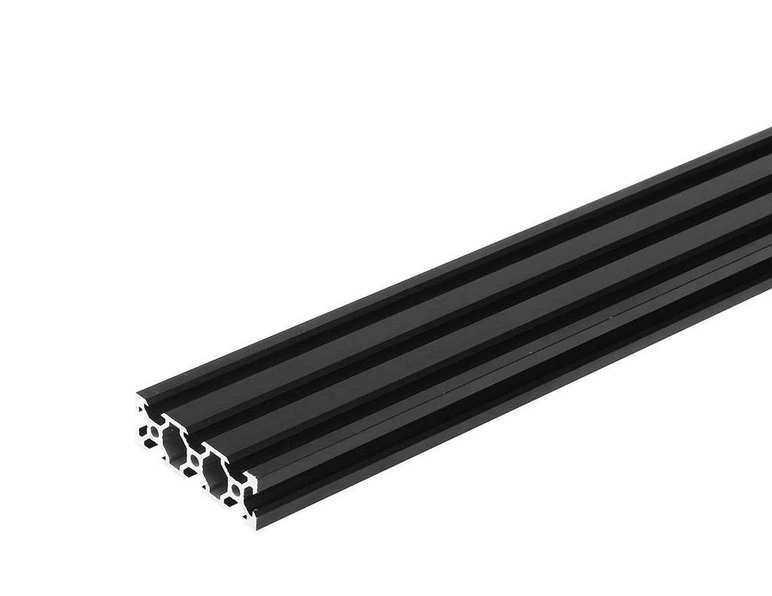

2060 Series Aluminum T-Slot Extrusion Profile
This 2060 series aluminum T-slot extrusion profile is produced by hot extruding aluminum through a shaped die, giving a slotted cross-section that runs continuously along the full length. The slot geometry allows fittings, brackets, and panels to be mounted at almost any point, which makes the profile convenient for building modular frames and workbenches.
Aluminum is chosen for machine frames and similar structures because of its favorable strength-to-weight ratio, resistance to atmospheric corrosion, and ease of machining. Because the section is formed in a single pass through the die, the slot dimensions and outer faces stay consistent from end to end, so components line up reliably when the frame is assembled.
Slotted Cross-Section
The T-slot section provides a continuous mounting channel on the profile faces. Nuts and fittings can be positioned anywhere along the slot, allowing brackets, hinges, panels, and accessories to be added or repositioned without drilling new holes. This flexibility supports frames that are built, adjusted, and extended over time, and it simplifies the assembly of repetitive structures.
Material and Surface
The profile is made from aluminum alloy and can be supplied in a mill finish or with a selected surface treatment. Treatments commonly applied to extruded profiles include anodizing and powder coating, each changing the appearance and the level of surface protection. The suitable finish depends on the working environment and the visual requirement of the finished frame.
Typical Applications
- Machine frames, bases, and equipment enclosures
- Workbenches, assembly tables, and workstations
- Guarding, safety fencing, and protective screens
- Shelving, racks, and modular storage structures
- Display frames, partitions, and exhibition stands
Fabrication and Assembly
The profile can be cut to length and drilled or tapped with standard aluminum fabrication methods, and it is commonly joined with corner brackets, connectors, and slot nuts. Being light, larger frames can be handled and assembled with less effort than comparable steel structures while still providing useful stiffness for many structural and semi-structural duties.
Summary
This 2060 series aluminum T-slot extrusion profile is a practical section for modular machine frames, workbenches, and guarding. Its continuous slot, uniform section, and light weight make it easy to build, adjust, and extend structures, and it works with common brackets and connectors used in aluminum framing systems.
The matching bolt & nut is usually M6 or M5 dedicated T-nut and inner hexagon internal connection. If it needs to bear high strength, please use M6 bolt to connect with a sliding nut so that the framework much stronger and reliable. All 20 series T-slot aluminum extrusion profile can freely connect with each other.
Material & Temper | Aluminum Alloy 6063-T5,6061-T6 |
Surface Treatment | Anodizing, powder coating, electrophoresis, wood grain, polishing, brushing, sandblasting, etc. |
Colour | Silver |
Grade | 6000 series |
Slot Width | 6.2 mm |
Weight | 1.29 kg/m |
Mass of Inertia | lx: 14.64 cm4 ly: 1.92 cm4 |
Section Modulus | zx: 5.36 cm3 zy: 1.77 cm3 |
T-slot height | 6.1 mm |
Section size | 20 mm × 60 mm |
Hole | φ5 mm |
Thickness of diagonal bar | 1.5 mm |
Fabrication | Die designing→Die making→Smelting&alloying→QC →Extruding→ Cutting→ Heat Treatment→QC→Surface treatment→QC→Packing→ QC→Shipping→After Sale Service |
Deep Processing | Precision cutting/CNC / Punching / Checking / Tapping / Drilling /Milling |
Certification | ISO9001 |
