Extruded Aluminum Heat Sink Profile for LED Lighting and Power Electronics Cooling
Product Overview

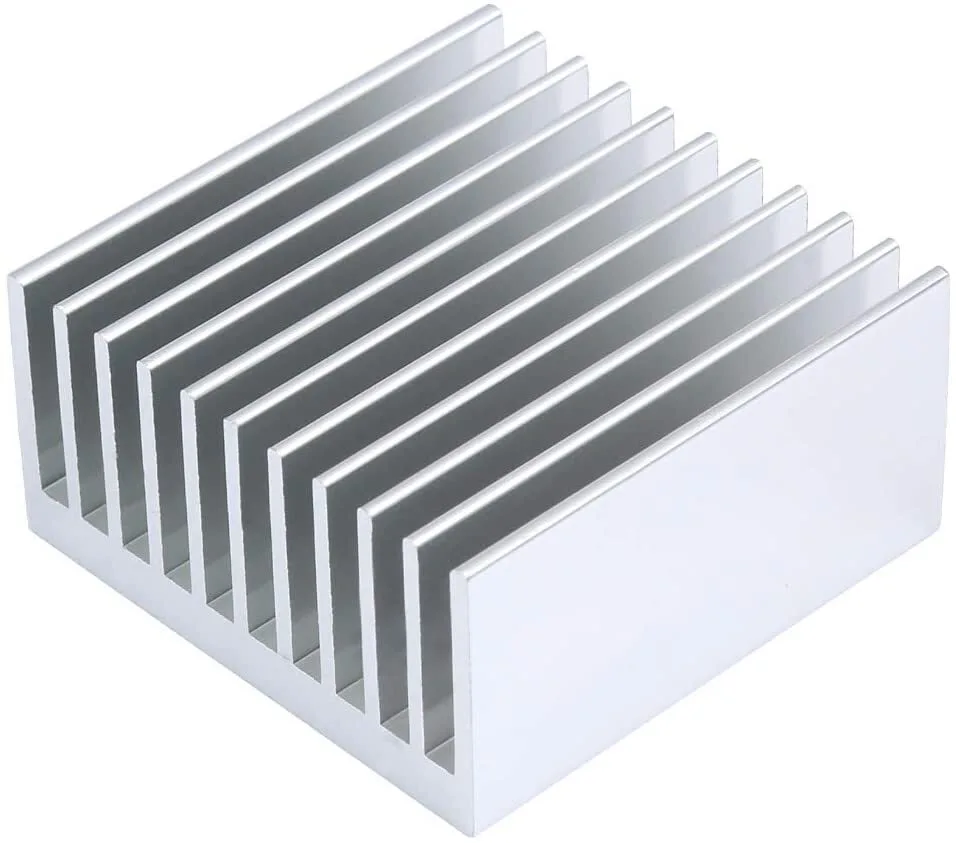

This extruded aluminum heat sink profile is a solid aluminium section with a flat base and a row of straight fins standing on top. The fins multiply the surface area that meets the air, so heat taken from a warm component spreads along the base and leaves through the fins. Because the profile is extruded in one piece, the base and the fins form a single continuous path for heat with no bonded joint in between.
The section is supplied cut to length and can be drilled, tapped or milled so that it mounts directly on a circuit board, a lamp housing or a power module. Taller fins and closer spacing increase the surface area, while free space between the fins keeps air moving so that warm air does not sit in the channels.
Material and Extrusion
The profile is pressed from aluminium alloy, a light metal with high thermal conductivity. Aluminium carries heat away from a component quickly and spreads it across the whole section, which stops hot spots forming under a single chip. A natural oxide layer forms on the surface and protects the metal in normal indoor service, and the surface can be anodised or painted when a different finish is needed.
Key Features
- Single-piece extruded section with a continuous path from base to fins
- Straight fins that increase the surface area for cooling
- Light weight that adds little load to the part being cooled
- Flat base that sits closely against a component or a housing
- Surface that accepts anodising, painting or machining
- Lengths cut to the size each assembly needs
Typical Applications
- LED lighting fixtures and lamp housings
- Power supplies, drivers and converters
- Electronic enclosures and control boxes
- Motor and inverter cooling
- Battery packs and charging equipment
- Instrumentation and sensor housings
Profiles and Machining
The section comes in a range of base widths, fin heights and fin spacings so the sink can be matched to the space and the heat load of each design. Lengths are cut to size, and holes for screws, clearance slots or tapped fixing points can be added when the drawing is agreed.
Quality Control
Each run is checked for section dimensions, straightness, flatness of the base and surface condition. Extrusions are inspected for scratches, dents and die marks before packing, and any inspection a customer requires can be agreed when the order is placed.
Ordering Information
Please send the profile drawing or the base width, fin height, fin spacing and length you need, together with the quantity. The section is made to order, so sizes outside the standard range can be discussed before production starts. Packing and shipment details are confirmed with each order.
Aluminum alloy, for its lightweight, beautiful, good thermal conductivity and easy processing into complex shapes, is widely used
to produce cooling equipment. Aluminium heat sink or aluminium extruded heatsinks are mainly three types:
* flat wide shape, or a fishbone-shaped comb-shaped;
* round or oval-shaped;
* branching shape.
The extruded heatsink provides effective cooling for LED (Light Emitting Diode) sources. We can manufacture customized aluminum heat sinks which are lightweight in smaller quantities that are not available from larger manufacturers, as well as high-volume production.
Our aluminum heat sinks extrusion can provide a highly effective heat management process for circuit boards & PCB by providing a precise combination of vertical and horizontal cooling. Various thicknesses and customized forms are also easily achievable.
We manufacture heat sinks that are essential equipment for the electric appliance that can effectively dissipate output
transistor heat.
Automotive equipment, NEV (New Energy Vehicles):
The heat sinks for automotive electronic equipment that enables high-density components to operate at stable temperatures over a wide spectrum of ambient conditions.
