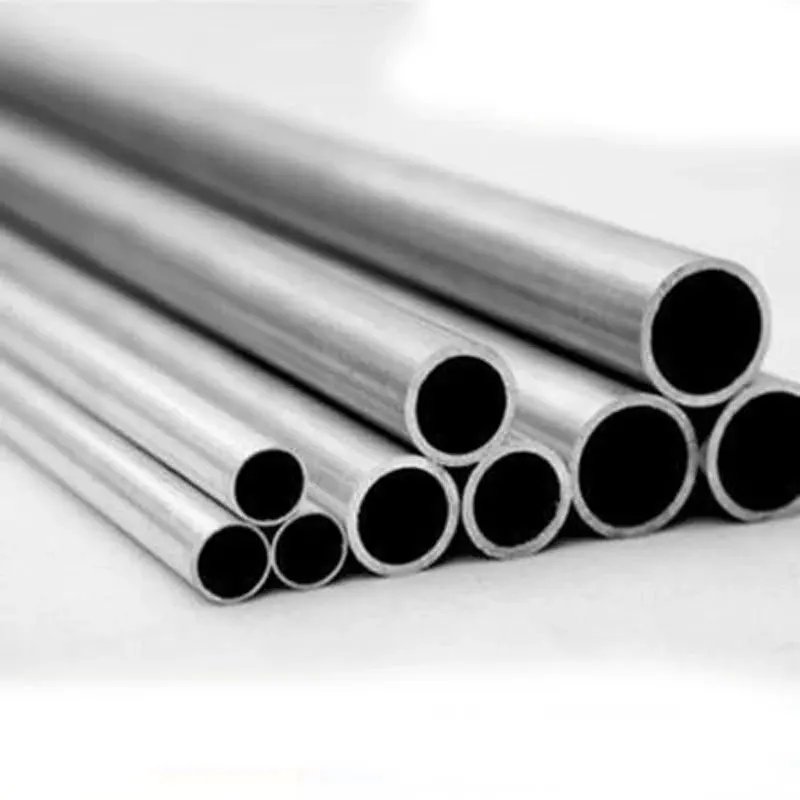

This 2024 aluminum seamless pipe is produced by hot extrusion, forming a one-piece round tube without a welded seam along its length. Because the wall is a single continuous section, the tube keeps a uniform wall thickness and a smooth internal bore, supporting reliable fluid transfer and consistent load distribution. The 2024 alloy is a copper-bearing, high-strength aluminum grade that responds well to heat treatment, giving the pipe a high strength-to-weight ratio compared with common 6061 tubing of the same size.
The pipe is extruded from 2024 aluminum alloy, a precipitation-hardening grade containing copper and magnesium as its main alloying elements. After extrusion the tube can be supplied in T4 (naturally aged) or T6 (artificially aged) temper. The seamless profile is drawn or extruded to the required outside diameter and wall thickness, then straightened and cut to length. Because there is no longitudinal weld, the tube wall is metallurgically continuous around the full circumference.
Seamless 2024 aluminum pipe is used where strength and a continuous wall are both required. Common uses include hydraulic and pneumatic lines, aerospace and aircraft tubing, precision machinery components, structural frames, and automotive or motorsport parts that need lightweight rigidity. It is also selected for bicycle frames and robotic arms where a clean bore and high fatigue resistance matter.
Pipe outside diameter, wall thickness and cut length can be made to drawing, with optional anodizing, painting or CNC end machining for assembly-ready parts.
Compared with welded tube, a seamless pipe avoids the heat-affected zone and weld bead that can weaken a joint and trap contaminants. This makes the tube easier to clean, more predictable under internal pressure and better suited to tight-tolerance assemblies. For buyers who need a strong, light and corrosion-resistant round tube, extruded seamless 2024 aluminum pipe offers a dependable balance of mechanical performance, machinability and long service life.
Model | Alumin(i)um Tube/Alumin(i)um Pipe. |
Surface treatment | Mill finish |
Material | 6063 6061 6060 and different aluminium alloy |
usage | aluminum profile for windows/ doors/ decoration/ construction/ curtain wall |
Quality | China Nation Standard GB/T |
Status | T4 T5 T6 or other special status |
Packing | Protective film +plastic film or EPE +kraft paper |
Certificate | ISO 9001 2008 |
MOQ | 1 tons. Usuall 12 tons for a 20 feet contaner; 24 tons for a 40 feet container. |
Length | Podwer coating 6.5meters, anodizing 6.5 meters, mill finish 12 meters |
Press Machine | 500-4000 tons all together 64 press lines |
Moulding | 1. Using our moulds, no fee; 2. Using customer drawing, opening mould, usually about 5 tons the moulding fee is free; 3. Can be diguessed. |
