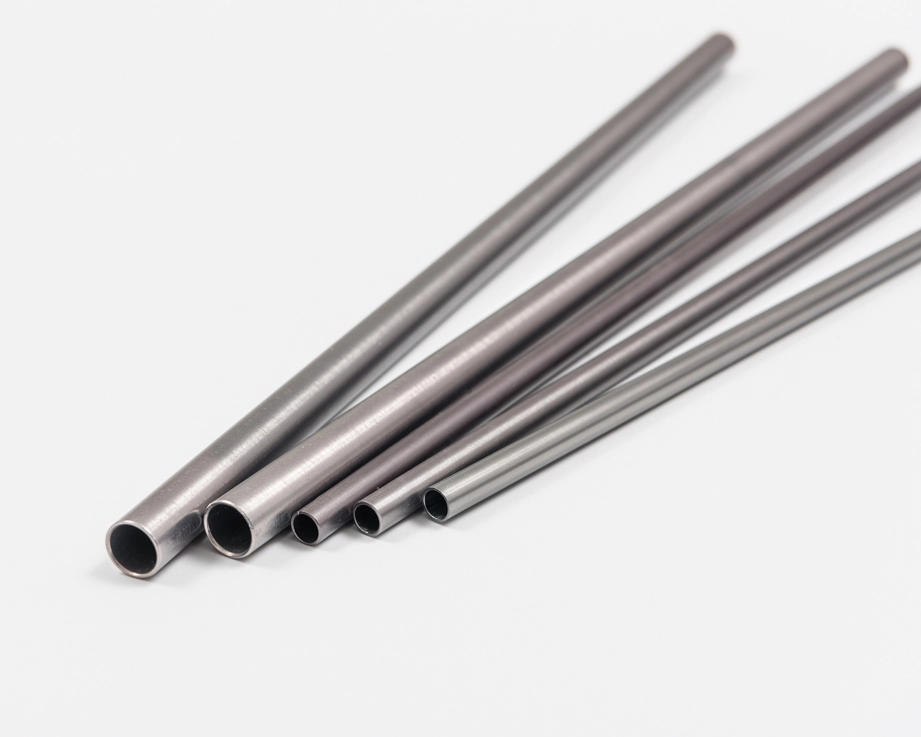

Small Diameter Aluminum Tube Cold Drawn in Round Sections for Instrumentation and Fluid Lines

Product Overview

This small diameter aluminum tube is a cold drawn round tube produced from aluminium alloy stock. Cold drawing pulls a pre-formed hollow section through a die at room temperature, which tightens the outside and inside diameter tolerances, evens out the wall thickness and leaves a smooth inner bore. The finished tube is straight and clean, ready to fit closely into machined parts and fluid components.

Because the tube is supplied in small outside diameters, it suits assemblies where space is limited and where weight matters. Lengths can be cut, deburred and chamfered so the tube goes straight into a production line without a second machining step.

Material and Construction

The tube is drawn from aluminium alloy, a light metal with good resistance to atmospheric corrosion and a high strength to weight ratio. The round section behaves the same in every direction, so bending and forming are predictable. A natural oxide layer forms on the surface and protects the metal in normal indoor and outdoor service.

Key Features

• Cold drawn round section with tight outside and inside diameter tolerances
• Smooth inner bore that limits pressure loss in fluid lines
• Even wall thickness along the full length for stable bending and forming
• Light weight that reduces the load on supporting structures
• Good resistance to atmospheric corrosion in normal service
• Straight lengths that assemble without straightening

Typical Applications

• Instrumentation lines and sensing assemblies
• Fluid transfer lines for air, water and light oils
• Pneumatic fittings and push-in connectors
• Small hydraulic and lubrication circuits
• Handles, spacers and light structural supports

Size Range

The tube is supplied in round sections across a range of small outside diameters and wall thicknesses. Lengths are cut to the sizes requested by the customer and both ends can be deburred or chamfered. Because the tube is drawn rather than extruded to its final size, the wall stays consistent along the whole length.

Quality Control

Each production run is checked for outside diameter, inside diameter, wall thickness, straightness and surface condition before packing. Tubes are inspected for scratches, dents and drawing marks, and dimensions are measured against the agreed specification.

Ordering Information

Please send the outside diameter, wall thickness, length, quantity and surface finish you need. The tube is made to order, so sizes outside the standard range can be discussed before production starts. Packing and shipment details are confirmed with each order.
