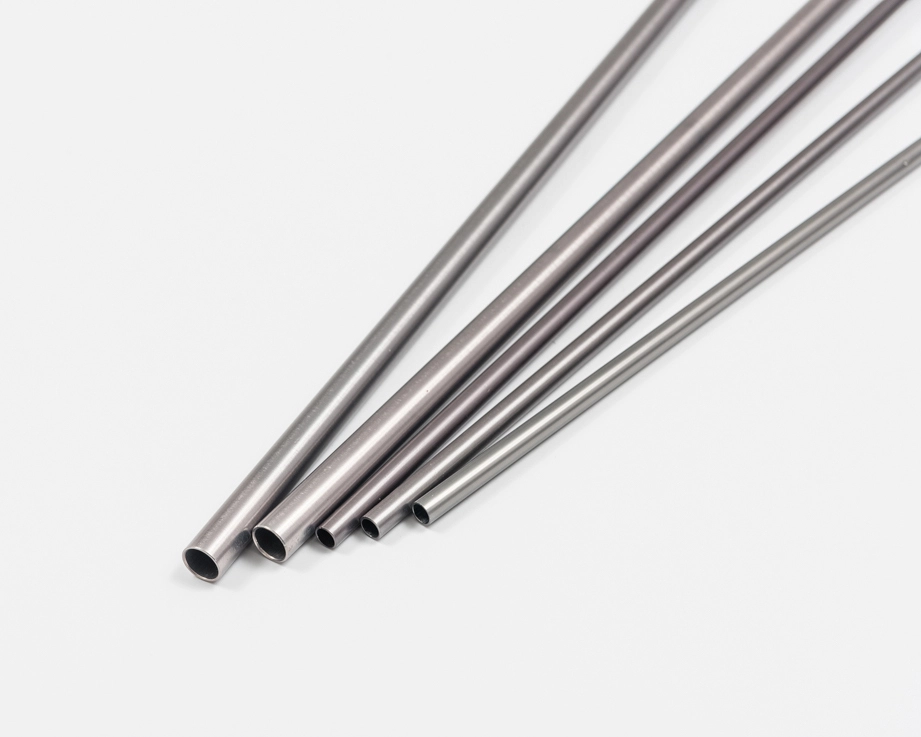

Extruded Cold Drawn Round Anti-corrosion Aluminium Tube for Industrial Applications
Product Overview
This extruded cold drawn round aluminium tube is produced from selected aluminium alloy billet through a combined hot extrusion and cold drawing process. Cold drawing refines the wall, tightens the dimensional tolerance and improves the surface finish, giving a straight and uniform round profile that is easy to fabricate and assemble. The round section can be cut, bent, threaded, welded and machined, so it adapts to a wide range of structural and functional parts.
Manufacturing Process
Production begins with the selection of aluminium billet, which is heated and pushed through a die to form the extruded tube. The extruded section is then cold drawn through a die and over a mandrel to reduce wall thickness and improve concentricity. After drawing, the tube is straightened, cut to length and finished. Because each step is carefully controlled, the finished tube shows consistent wall thickness, a clean inner bore and a smooth outer surface.
Material and Surface Properties
Aluminium is naturally lightweight and offers a favourable strength to weight ratio. The cold drawn surface can be supplied with an anti-corrosion treatment to improve resistance to moisture and everyday atmospheric exposure. The tube is non-magnetic and resists rust, which makes it suitable for environments where ferrous materials would corrode or interfere with magnetic components.
Key Features
- Round, straight profile with uniform wall thickness
- Cold drawn finish for improved dimensional accuracy
- Lightweight aluminium construction with a good strength to weight ratio
- Anti-corrosion treatment for longer service life
- Non-magnetic and rust resistant
- Easy to cut, bend, thread, weld and machine
Typical Applications
The tube is commonly used for industrial machinery, equipment frames, pneumatic and fluid lines, structural supports, automotive and machinery components, furniture frames, and general engineering fabrication. Its clean finish also suits visible decorative and architectural detail work where a neat metal surface is required.
Quality Control
Each production run is inspected for straightness, wall thickness, outer diameter, inner diameter and surface condition. Tubes are checked at the drawing stage and again after finishing, so that only consistent and defect free sections are prepared for shipment.
Customisation and Support
Because the tube is supplied as a round extruded profile, buyers can specify the size range, wall thickness and finished length that their project requires. Our team is glad to discuss material grade, surface finish and packing options so that the tube arrives ready for further processing.
Model | Aluminum/Aluminium Tube/Pipe |
Material Grade | 1000 series: 1050,1060,1070,1080,1100,1435, etc. 2000 series: 2011, 2014,2017,2024, etc. 3000 series: 3002,3003,3104,3204,3030 , etc. 5000 series: 5005,5025,5040,5056,5083, etc. 6000 series:6101,6003,6061,6063,6020,6201,6262,6082, etc. 7000 series: 7003,7005,7050,7075, etc. |
Size | Outer Diameter:3-250mm Wall Thickness: 0.3-50mm Length: 10mm-6000mm |
Standards | ASTM,ASME,EN ,JIS, DIN,GB/T , etc. |
Surface treatment | Mill finished , anodized , powder coating, Sand blast, etc. |
Surface colors | Nature, silver, bronze, champagne, black, golden, etc. As customized |
Status | Nature, silver, bronze, champagne, black, golden, etc. As customized |
Usage | Aluminum profile for windows/doors/decoration/construction/curtain wall |
Quality | China Nation Standard GBT |
Packing | Protective film+plastic film or EPE+kraft paper |
Certificate | ISO 9001 2008 |
MOQ | 1 tons.Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container |
Press Machine | 500-4000 tons all together 64 press lines |
Moulding | 1.Using our moulds, no fee; 2.Using customer drawing , opening mould , usually about 5 tons the moulding fee is free; 3.Can be discussed. |
